Compute Module 5 on sale now from $45

Today we’re happy to announce the much-anticipated launch of Raspberry Pi Compute Module 5, the modular version of our flagship Raspberry Pi 5 single-board computer, priced from just $45.

An unexpected journey

We founded the Raspberry Pi Foundation back in 2008 with a mission to give today’s young people access to the sort of approachable, programmable, affordable computing experience that I benefitted from back in the 1980s. The Raspberry Pi computer was, in our minds, a spiritual successor to the BBC Micro, itself the product of the BBC’s Computer Literacy Project.

But just as the initially education-focused BBC Micro quickly found a place in the wider commercial computing marketplace, so Raspberry Pi became a platform around which countless companies, from startups to multi-billion-dollar corporations, chose to innovate. Today, between seventy and eighty percent of Raspberry Pi units go into industrial and embedded applications.

While many of our commercial customers continue to use the “classic” single-board Raspberry Pi form factor, there are those whose needs aren’t met by that form factor, or by the default set of peripherals that we choose to include on the SBC product. So, in 2014 we released the first Raspberry Pi Compute Module, providing just the core functionality of Raspberry Pi 1 – processor, memory, non-volatile storage and power regulation – in an easy-to-integrate SODIMM module.

Compute Modules make it easier than ever for embedded customers to build custom products which benefit from our enormous investments in the Raspberry Pi hardware and software platform. Every subsequent generation of Raspberry Pi, except for Raspberry Pi 2, has spawned a Compute Module derivative. And today, we’re happy to announce the launch of Compute Module 5, the modular version of our flagship Raspberry Pi 5 SBC.

Meet Compute Module 5

Compute Module 5 gives you everything you love about Raspberry Pi 5, but in a smaller package:

  • A 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU
  • A VideoCore VII GPU, supporting OpenGL ES 3.1 and Vulkan 1.3
  • Dual 4Kp60 HDMI® display output
  • A 4Kp60 HEVC decoder
  • Optional dual-band 802.11ac Wi-Fi® and Bluetooth 5.0
  • 2 × USB 3.0 interfaces, supporting simultaneous 5Gbps operation
  • Gigabit Ethernet, with IEEE 1588 support
  • 2 × 4-lane MIPI camera/display transceivers
  • A PCIe 2.0 x1 interface for fast peripherals
  • 30 GPIOs, supporting 1.8V or 3.3V operation
  • A rich selection of peripherals (UART, SPI, I2C, I2S, SDIO, and PWM)

It is available with 2GB, 4GB, or 8GB of LPDDR4X-4267 SDRAM, and with 16GB, 32GB, or 64GB of MLC eMMC non-volatile memory. 16GB SDRAM variants are expected to follow in 2025.

Compute Module 5 is mechanically compatible with its predecessor, Compute Module 4, exposing all signals through a pair of high-density perpendicular connectors, which attach to corresponding parts on the customer’s carrier board. Additional stability is provided by four M2.5 mounting holes arranged at the corners of the board.

There are a small number of changes to the pin-out and electrical behaviour of the module, mostly associated with the removal of the two two-lane MIPI interfaces, and the addition of two USB 3.0 interfaces. A detailed summary of these changes can be found in the Compute Module 5 datasheet.

Accessories accessorise

But Compute Module 5 is only part of the story. Alongside it, we’re offering a range of new accessories to help you get the most out of our new modular platform.

IO Board

Every generation of Compute Module has been accompanied by an IO board, and Compute Module 5 is no exception.

The Raspberry Pi Compute Module 5 IO Board breaks out every interface from a Compute Module 5. It serves both as a development platform and as reference baseboard (with design files in KiCad format), reducing the time to market for your Compute Module 5-based designs.

The IO Board features:

  • A standard 40-pin GPIO connector
  • 2 × full-size HDMI 2.0 connectors
  • 2 × 4-lane MIPI DSI/CSI-2 FPC connectors (22-pin, 0.5mm pitch cable)
  • 2 × USB 3.0 connectors
  • A Gigabit Ethernet jack with PoE+ support (requires a separate Raspberry Pi PoE+ HAT+)
  • An M.2 M-key PCIe socket (for 2230, 2242, 2260 and 2280 modules)
  • A microSD card socket (for use with Lite modules)
  • An RTC battery socket
  • A 4-pin fan connector

Power is provided by a USB-C power supply (sold separately).

IO Case

As in previous generations, we expect some users to deploy the IO Board and Compute Module combination as a finished product in its own right: effectively an alternative Raspberry Pi form factor with all the connectors on one side. To support this, we are offering a metal case which turns the IO Board into a complete encapsulated industrial-grade computer. The Raspberry Pi IO Case for Raspberry Pi Compute Module 5 includes an integrated fan, which can be connected to the 4-pin fan connector on the IO Board to improve thermal performance.

Cooler

While Compute Module 5 is our most efficient modular product yet in terms of energy consumed per instruction executed, like all electronic products it gets warm under load. The Raspberry Pi Cooler for Raspberry Pi Compute Module 5 is a finned aluminium heatsink, designed to fit on a Compute Module 5, and including thermal pads to optimise heat transfer from the CPU, memory, wireless module and eMMC.

Antenna Kit

Wireless-enabled variants of Compute Module 5 provide both an onboard PCB antenna, and a UFL connector for an external antenna. Use of the Raspberry Pi Antenna Kit (identical to that already offered for use with Compute Module 4) with Compute Module 5 is covered by our FCC modular compliance.

Development Kit

The Raspberry Pi Development Kit for Raspberry Pi Compute Module 5 comprises a Compute Module 5, an IO Board, and all the other accessories you need to start building your own design:

  • CM5104032 (Compute Module 5, with wireless, 4GB RAM, 32GB eMMC storage)
  • IO Case for Compute Module 5
  • Compute Module 5 IO Board
  • Cooler for Compute Module 5
  • Raspberry Pi 27W USB-C PD Power Supply (local variant as applicable)
  • Antenna Kit
  • 2 × Raspberry Pi standard HDMI to HDMI Cable
  • Raspberry Pi USB-A to USB-C Cable

Early adopters

Today’s launch is accompanied by announcements of Compute Module 5-based products from our friends at KUNBUS and TBS, who have built successful products on previous Raspberry Pi Compute Modules and whom we have supported to integrate our new module into their latest designs. Other customers are preparing to announce their own Compute Module 5-powered solutions over the next weeks and months. The world is full of innovative engineering companies of every scale, and we’re excited to discover the uses to which they’ll put our powerful new module. Try Compute Module 5 for yourself and let us know what you build with it.

The post Compute Module 5 on sale now from $45 appeared first on Raspberry Pi.

Powering industrial innovation: Compute Module 5 meets Revolution Pi

By: Dave Lee

Revolution Pi has been designing and manufacturing successful products with Raspberry Pi Compute Modules for years. In this guest post, they talk about why they continue to choose Raspberry Pi technology, and discuss their experience designing with our brand-new Compute Module 5.

Revolution Pi has been building flexible industrial devices with Raspberry Pi Compute Modules since the very beginning. As a long-time partner, we have witnessed their impressive evolution from the first to the fifth generation over the past ten years.

Technical advancements that matter

Raspberry Pi Compute Module 5’s enhancements directly address industrial requirements: it provides quad-core CPU performance up to 2.4GHz, a built-in USB 3.2 controller, and an improved PCIe controller. Raspberry Pi’s continuous integration of more interfaces directly on the Compute Module advances its capabilities while freeing up valuable space on our carrier board. These well-integrated interfaces within the Raspberry Pi ecosystem enable more flexible hardware designs. This allowed us to equip the RevPi Connect 5 with up to four multi-Gigabit Ethernet ports, letting industrial users connect multiple industrial fieldbuses and other networks with low latency.

The RevPi Connect 5 consists of two PCBs with a big bolted-on heat sink

Collaborative development process

Working with Raspberry Pi on this has been exceptional. They understand what industrial developers need. We received early samples to test with, which was critical. It allowed us to iterate and optimise our design solutions, especially when developing a custom heat sink. Managing the heat generated by the powerful new Compute Module in a DIN rail enclosure was an important part of the design process. Having real hardware to test with made all the difference.

Systematic thermal management

Maintaining Compute Module 5’s operating temperature below 85°C under heavy load required a methodical development process. We started with thermal simulation analysis to identify hotspots at full operating capacity. This analysis formed the basis for our practical prototyping. Through iterative testing under extreme conditions, we optimised the heatsink design before conducting extensive testing with the final housing inside our climatic chamber. The entire process culminated in establishing precise manufacturing standards with rigorous quality control.

Analysis of simulated airflow in the heatsink

Seamless software integration

On the software side, working with Raspberry Pi’s platform enables smooth integration. When we hit technical challenges, their engineering team was right there to support us. Their unified kernel approach across all products allowed us to focus on integrating new features like the CAN FD interfaces instead of wrestling with compatibility issues. This standardisation benefits Revolution Pi users as well — they can use our industrialised Raspberry Pi OS-based image consistently across all Revolution Pi devices.

A typical Revolution Pi system configuration, consisting of a RevPi Connect 5 and several expansion modules

A proven partnership

From the first Compute Module to now, Raspberry Pi has shown growing commitment to industrial computing. Compute Module 5, purpose-built for products like Revolution Pi, demonstrates what’s possible when combining Raspberry Pi’s innovation with our industrial-grade engineering. We’re excited to continue pushing the boundaries of industrial automation and IIoT applications together.

The post Powering industrial innovation: Compute Module 5 meets Revolution Pi appeared first on Raspberry Pi.

Raspberry Pi Christmas shopping guide

It’s the most wonderful time of the year… to give someone on your gift list something (or all things) Raspberry Pi. The past year has seen many exciting new releases, so we understand if you’re sat scratching your head at what to buy your favourite Raspberry Pi fanatic. But look no further! For the sake of your peace, and in a show of our goodwill, we elves have gone and done all the work for you. Good tidings we bring.

This image features a Raspberry Pi AI Camera Module connected to a long, curved orange ribbon cable. The small, square-shaped green circuit board has a black camera lens at its center and yellow mounting holes at each corner. The ribbon cable is flexed into a loop and prominently displays white text that reads "Raspberry Pi Camera Cable Standard – Mini – 200mm." The cable is designed to connect the camera to a Raspberry Pi device, and the image is set against a plain gray background.

Our newest stuff

If it’s a Raspberry Pi superfan you’ve got on your list, you might want to plump for one of our latest hardware releases to really impress them. After all, what do you get someone who has everything? The newest, shiniest thing they haven’t managed to get their hands on yet.

Raspberry Pi Pico 2 W

Launched just a couple of days ago, Raspberry Pi Pico 2 W is the wireless variant of Pico 2, giving you even more flexibility in your connected projects. It’s on sale now for just $7.

Raspberry Pi Touch Display 2

We also upgraded our touch display this year. Raspberry Pi Touch Display 2 is a seven-inch 720×1280px touchscreen display for Raspberry Pi. It’s ideal for interactive projects such as tablets, entertainment systems, and information dashboards, and it’s available for $60.

Raspberry Pi AI HAT+

For the more confident Raspberry Pi user, you might want something to tempt them to broaden their skills into the field of AI. The Raspberry Pi AI HAT+ features a built-in neural network accelerator, turning your Raspberry Pi 5 into a high-performance, accessible, and power-efficient AI machine. The Raspberry Pi AI HAT+ allows you to build a wide range of AI-powered applications for process control, home automation, research, and more. It’s on sale now from $70.

The image you uploaded shows a Raspberry Pi single-board computer with an attached AI accelerator module, likely the Raspberry Pi AI Hat. This hat includes a green circuit board with a central chip that appears to be from Hailo, a company that specializes in artificial intelligence (AI) processors. The board is connected to the Raspberry Pi via the GPIO pins, and it has several components related to AI processing and other features to enable high-performance machine learning on the device. This configuration is designed for AI applications like real-time image processing, neural network acceleration, and other computationally intensive tasks. The text "26 TOPS" refers to the AI hat's ability to perform 26 trillion operations per second, which is a significant performance specification for AI applications.

Raspberry Pi AI Camera

For more easy-to-deploy vision AI applications and neural network models, we’d recommend our new Raspberry Pi AI Camera, which takes advantage of Sony’s IMX500 Intelligent Vision Sensor. It’s available now for $70, and it works with any model of Raspberry Pi — including the super low-cost Zero family.

This image features a Raspberry Pi AI Camera Module connected to a long, curved orange ribbon cable. The small, square-shaped green circuit board has a black camera lens at its center and yellow mounting holes at each corner. The ribbon cable is flexed into a loop and prominently displays white text that reads "Raspberry Pi Camera Cable Standard – Mini – 200mm." The cable is designed to connect the camera to a Raspberry Pi device, and the image is set against a plain gray background.
This image shows a Raspberry Pi setup on a wooden surface, featuring a Raspberry Pi board connected to an AI camera module via an orange ribbon cable. The Raspberry Pi board is attached to several cables: a red one on the left for power and a white HDMI cable on the right. The camera module sits in the lower right corner, with its lens facing up. Part of a white and red keyboard is visible on the right side of the image, and a small plant in a white pot is partially visible on the left. The scene suggests a Raspberry Pi project setup in progress.

Stocking stuffers

If you’re looking for some smaller-but-still-mighty bits to fit in a stocking, we have some great affordable options too. Below is a list of some of the very latest, including a recent fan favourite, the…

Raspberry Pi Bumper

Protect and secure your Raspberry Pi 5 with the Raspberry Pi Bumper, a snap-on silicone cover that protects the bottom and edges of the board. This is a lovely, affordable, and super useful gift for any Raspberry Pi user, and it costs just $3.

Raspberry Pi SD Cards

2024 saw the release of our first-party Raspberry Pi SD Cards. Rigorously tested to ensure optimal performance on Raspberry Pi computers, these Class A2 microSD cards help ensure you get the smoothest user experience from your device. They are available in three different capacities to fit your needs.

32GB
64GB
128GB

Raspberry Pi SSD Kit

With a Raspberry Pi M.2 HAT+ and a Raspberry Pi NVMe SSD bundled together, the Raspberry Pi SSD Kit lets you unlock outstanding performance for I/O intensive applications on your Raspberry Pi 5 — including super-fast startup when booting from SSD. The Kit is available now, in 256GB or 512GB capacities, from $40.

You can also grab the SSDs on their own, starting from $30.

Raspberry Pi USB 3 Hub

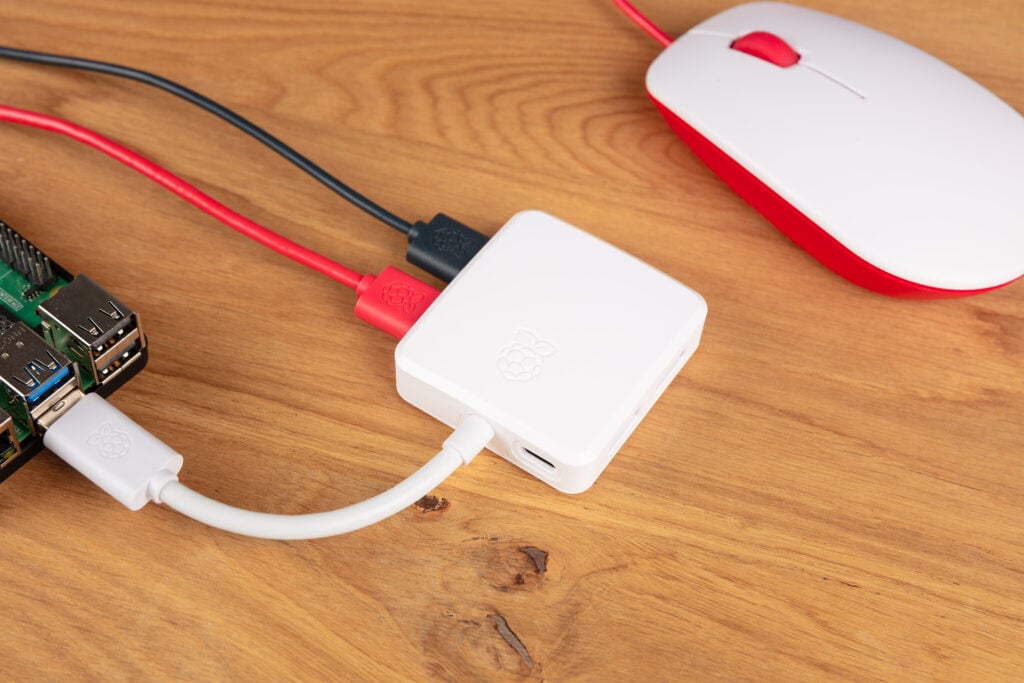

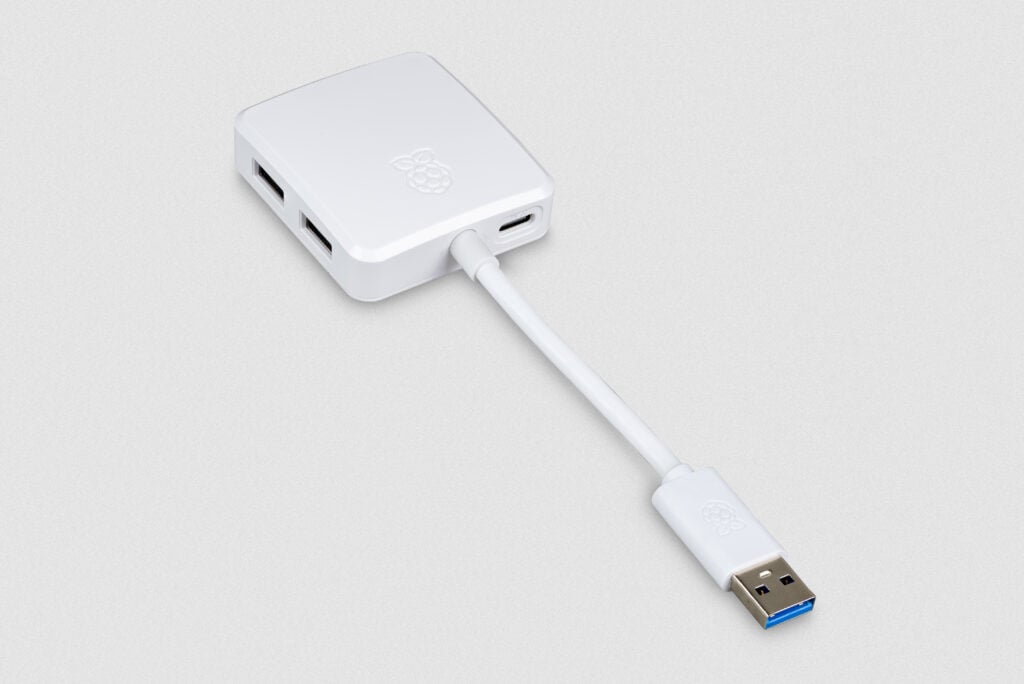

Our Raspberry Pi USB 3 Hub is the solution to your need for more peripherals than you have ports: it provides extra connectivity for your devices by turning one USB-A port into four, and is compatible with all Raspberry Pi devices. We think it’s the best you can buy. You can get one now for just $12.

Mugs, stickers, and badges

If you’re looking for something super fun and easy, check out our Raspberry Pi-branded merchandise, available to buy online from your local Approved Reseller. If you’re in Cambridge, UK, a trip to the Raspberry Pi Store would put stickers, mugs, water bottles, t-shirts, and more in your hands right away. (More on that below.)

Books, books, and more books

A personal favourite of mine this Christmas, and certainly your dearest retro gamer’s, is Code the Classics Volume II (£24.99), which shows you how to create your own video games inspired by some of the seminal games of the 1980s.

The Official Raspberry Pi Camera Guide 2nd Edition cover

If you were thinking of getting your favourite tinkering photographer a Raspberry Pi Camera, it might also be a good idea to pick up a copy of The Official Raspberry Pi Camera Guide (£14.99) — we released an updated second edition just last week.

That’s not the only new title to hit the Raspberry Pi Press store this year. If it’s our newest releases you’re interested in, you have titles such as the Book of Making 2025 and The Official Raspberry Pi Handbook 2025 (both originally priced at £14) to choose from. A special 30% discount will be applied at checkout if you choose either of these books.

If you’d like to purchase a gift that keeps on giving all year round, you can subscribe to receive a brand new edition of the official Raspberry Pi magazine, The MagPi, on your doorstep each month. You’ll also get a free Raspberry Pi Pico W if you sign up to a six- or twelve-month subscription.

The Raspberry Pi Store

If you’d like to get out into the twinkling streets of Cambridge at Christmas time, the Raspberry Pi Store in the Grand Arcade (we’re upstairs!) has stock of everything above and much, much more. We’ve also picked some excellently knowledgeable staff who can help you choose something if you’re not sure what you’re looking for.

The image depicts the exterior of a Raspberry Pi store. Here are the key details: Store Details: The store prominently displays the Raspberry Pi name and logo above its entrance. Through a large glass window, we can glimpse the well-lit interior with various items on display. Blurred figures of people are seen walking in front of the store, suggesting motion. A metal railing separates the walking area from a lower level in the mall. The architecture features beige-colored walls and pillars. Raspberry Pi: The store specializes in products related to Raspberry Pi, a popular single-board computer used for various projects and educational purposes.

The post Raspberry Pi Christmas shopping guide appeared first on Raspberry Pi.

Raspberry Pi Pico 2 W on sale now at $7

Update: In advance of official MicroPython support for Pico 2 W, you can download our unofficial MicroPython build here; you’ll find the README here.

Today our epic autumn of product launches continues with Raspberry Pi Pico 2 W, the wireless-enabled variant of this summer’s Pico 2. Built around our brand new RP2350 microcontroller, featuring the tried and tested wireless modem from the original Pico W, and priced at just $7, it’s the perfect centrepiece for your connected Internet of Things projects.

raspberry pi pico 2 w hero

RP2350: the connoisseur’s microcontroller, redux

When we launched our debut microcontroller, RP2040, way back in 2021, we couldn’t have imagined the incredible range of products that would be built around it, or the uses that the community would put them to. Combining a symmetric pair of fast integer cores; a large, banked, on-chip memory; rich support for high-level languages; and our patented programmable I/O (PIO) subsystem, it quickly became the go-to device for enthusiasts and professional engineers seeking high-performance, deterministic interfacing at a low price point.

close up raspberry pi pico 2 w

RP2350 builds on this legacy, offering faster cores, more memory, floating point support, on-chip OTP, optimised power consumption, and a rich security model built around Arm’s TrustZone for Cortex-M. It debuted in August on Pico 2, on the DEF CON 32 badge (designed by our friends at Entropic Engineering, with firmware and a gonzo sidewalk badge presentation by the redoubtable Dmitry Grinberg), and on a wide variety of development boards and other products from our early-access partners.

Wireless things

Many of the projects and products that people build on top of our platforms — whether that’s our Linux-capable Raspberry Pi computers, our microcontroller boards, or our silicon products — answer to the general description “Internet of Things”. They combine local compute, storage, and interfacing to the real world with connectivity back to the cloud.

Raspberry Pi Pico 2 W brings all the power of RP2350 to these IoT projects. The on-board CYW43439 modem from our friends at Infineon provides 2.4GHz 802.11n wireless LAN and Bluetooth 5.2 connectivity, and is supported by C and MicroPython libraries. Enthusiasts benefit from the breadboard-friendly Pico form factor, while our upcoming RM2 radio module (already in use on Pimoroni’s Pico Plus 2 W) provides a route to scale for professional products which have been prototyped on the platform.

lifestyle raspberry pi pico 2 w

More to come

We’re very pleased with how Pico 2 W has turned out. And, where the Pico 1 series ended with Pico W, we have a few more ideas in mind for the Pico 2 series. Keep an eye out for more news in early 2025.

The post Raspberry Pi Pico 2 W on sale now at $7 appeared first on Raspberry Pi.

The Official Raspberry Pi Camera Module Guide out now: build amazing vision-based projects

We are enormously proud to reveal The Official Raspberry Pi Camera Module Guide (2nd edition), which is out now. David Plowman, a Raspberry Pi engineer specialising in camera software, algorithms, and image-processing hardware, authored this official guide.

The Official Raspberry Pi Camera Guide 2nd Edition cover

This detailed book walks you through all the different types of Camera Module hardware, including Raspberry Pi Camera Module 3, High Quality Camera, Global Shutter Camera, and older models; discover how to attach them to Raspberry Pi and integrate vision technology with your projects. This edition also covers new code libraries, including the latest PiCamera2 Python library and rpicam command-line applications, as well as integration with the new Raspberry Pi AI Kit.

Camera Guide - Getting Started page preview

Save time with our starter guide

Our starter guide has clear diagrams explaining how to connect various Camera Modules to the new Raspberry Pi boards. It also explains how to fit custom lenses to HQ and GS Camera Modules using C-CS adaptors. Everything is outlined in step-by-step tutorials with diagrams and photographs, making it quick and easy to get your camera up and running.

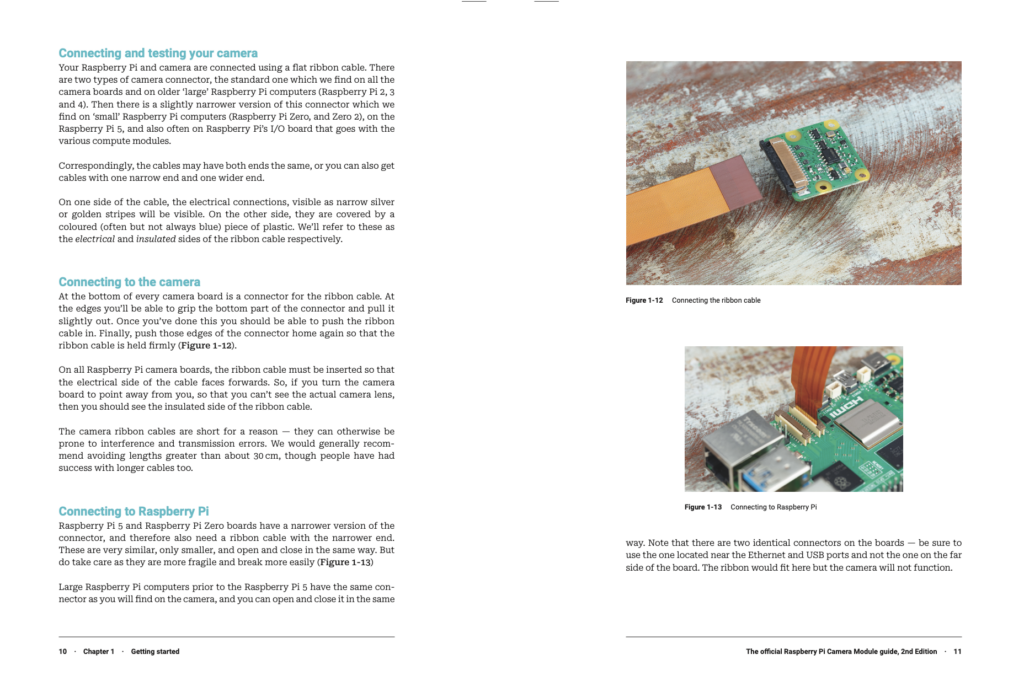

Camera Guide - connecting Raspberry Pi pages

Test your camera properly

You’ll discover how to connect your camera to a Raspberry Pi and test it using the new rpicam command-line applications — these replace the older libcam applications. The guide also covers the new PiCamera2 Python library, for integrating Camera Module technology with your software.

Camera Guide - Raw images and Camera Tuning pages

Get more from your images

Discover detailed information about how Camera Module works, and how to get the most from your images. You’ll learn how to use RAW formats and tuning files, HDR modes, and preview windows; custom resolutions, encoders, and file formats; target exposure and autofocus; shutter speed, and gain, enabling you to get the very best out of your imaging hardware.

Camera Guide - Get started with Raspberry Pi AI kit pages

Build smarter projects with AI Kit integration

A new chapter covers the integration of the AI Kit with Raspberry Pi Camera Modules to create smart imaging applications. This adds neural processing to your projects, enabling fast inference of objects captured by the camera.

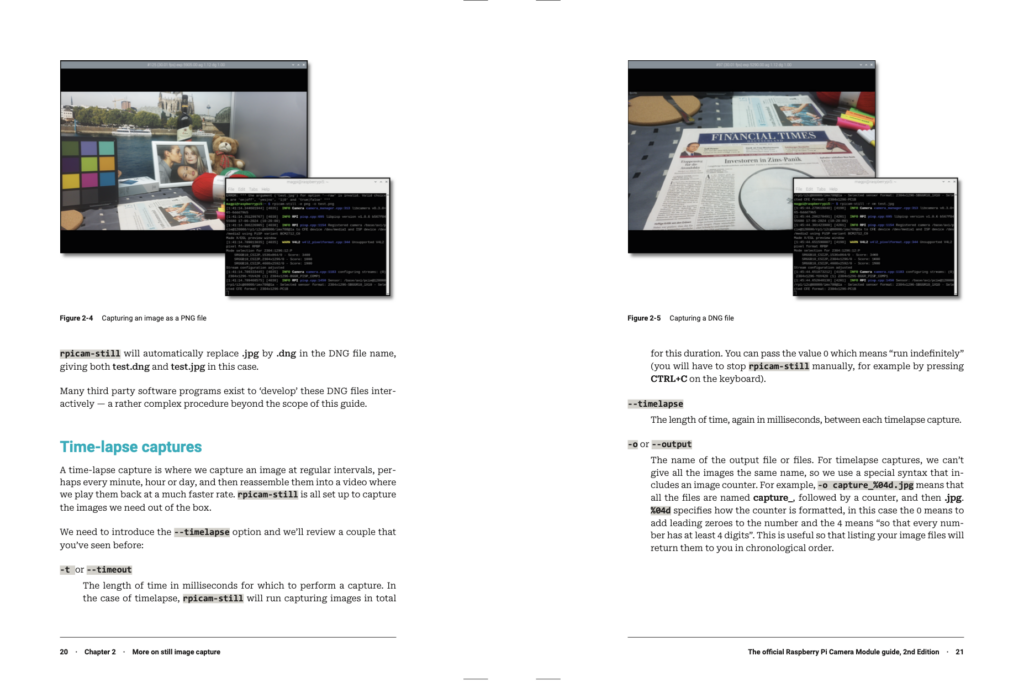

Camera Guide - Time-lapse capture pages
